Artyx
A fast, custom-built aluminium explorer designed for the Arctic.
Design team
- Geremia Anghinetti
- Gianluca Losa
- Ennio Tito Gagliasso
- Isabel Simona Pupillo
Master’s course project — University of Genoa
- Typology
- Custom explorer yacht
- Collaboration
- National Geographic
- Hull
- Aluminium
- Propulsion
- 4 × Mercury 600 hp outboards
- Length overall
- 20.00 m
- Beam
- 5.70 m
- Draught
- 1.10 m
- Cruising speed
- 32 knots
- Range
- 1,000 nm
- Fuel
- 10,000 L
- Berths
- 6
The mission
Artyx is a fast, custom-made 20-metre aluminium explorer, designed in collaboration with National Geographic for Arctic exploration. Every choice follows the mission: a robust aluminium hull for cold, ice-strewn waters, the speed to reach remote sites, and a layout that works as a floating base for expedition teams.
Exterior

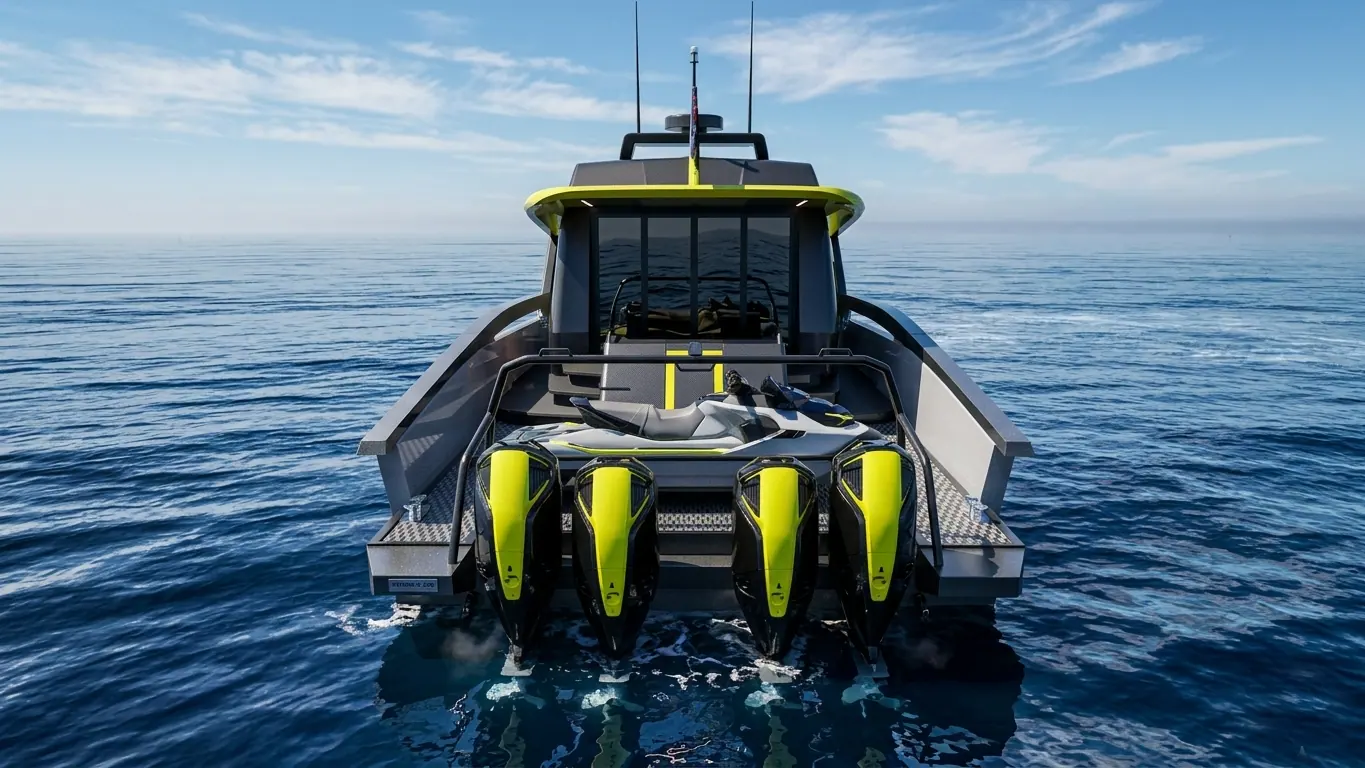

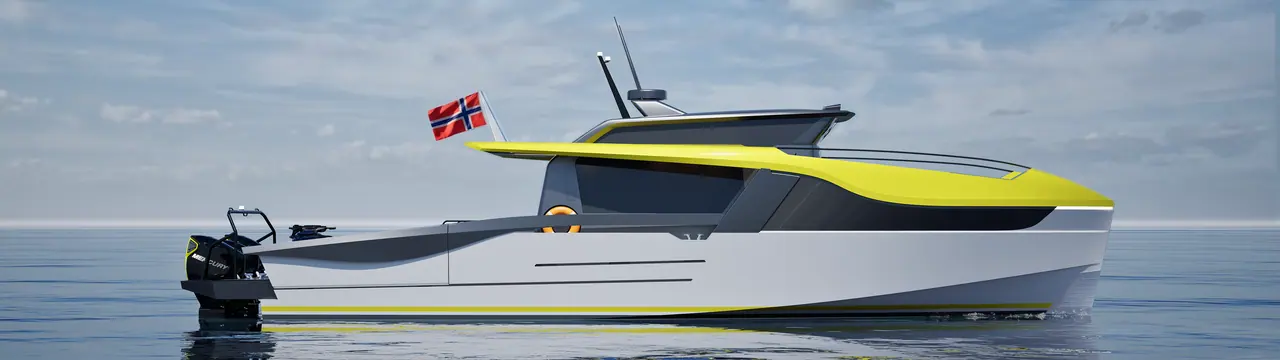

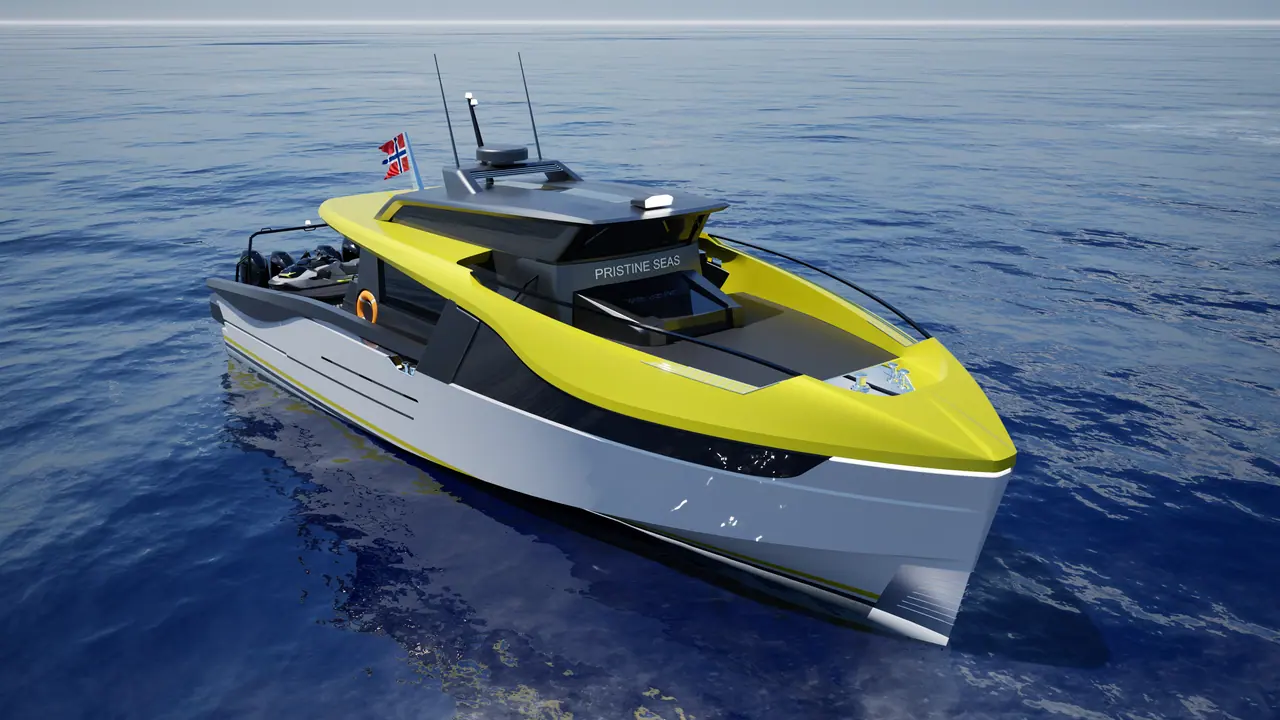

High-visibility yellow against grey ice and sea: the livery is a safety feature as much as an identity. A sharp, high bow meets cold chop while the open aft deck keeps equipment close at hand.

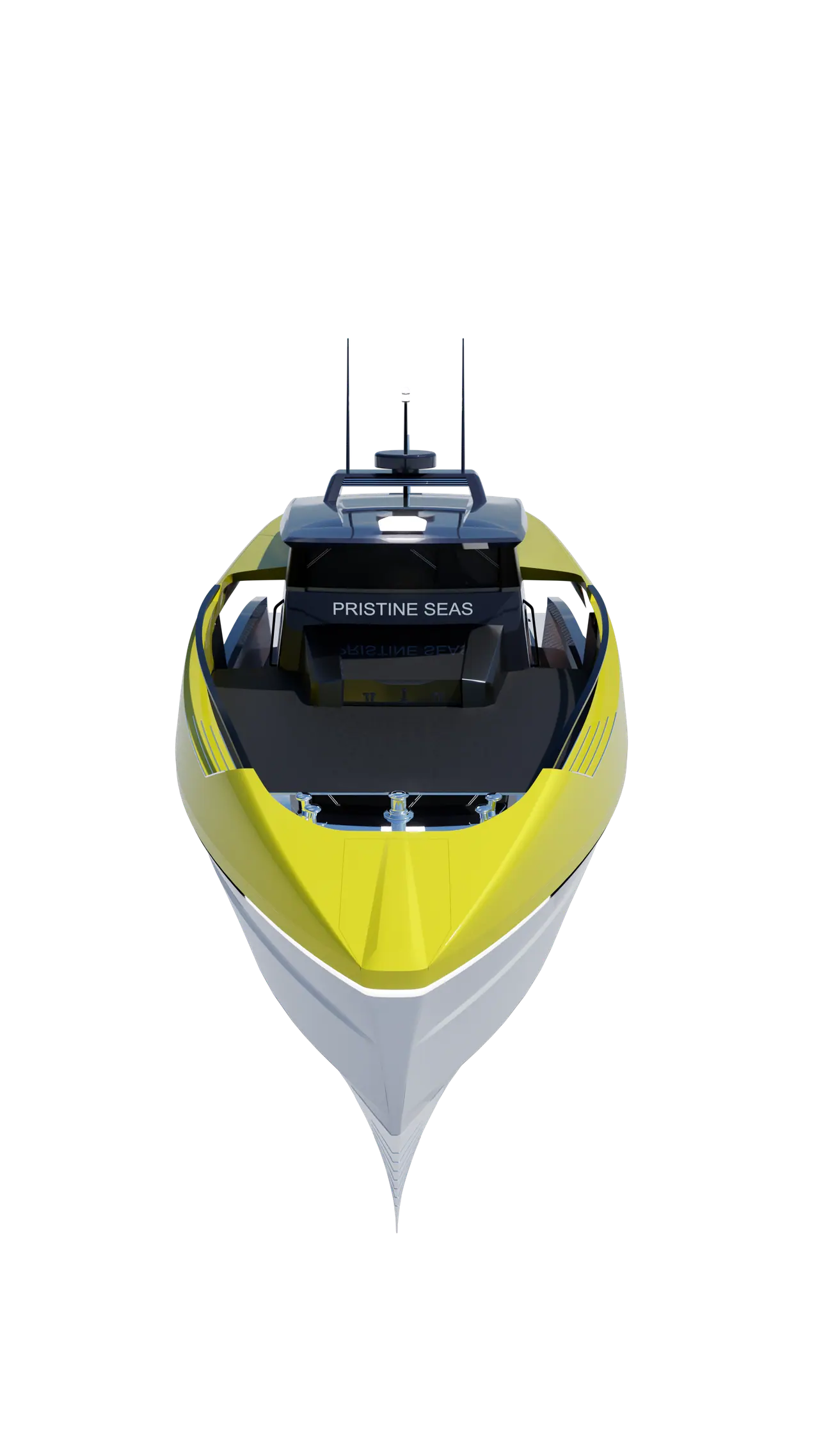

Seen from above

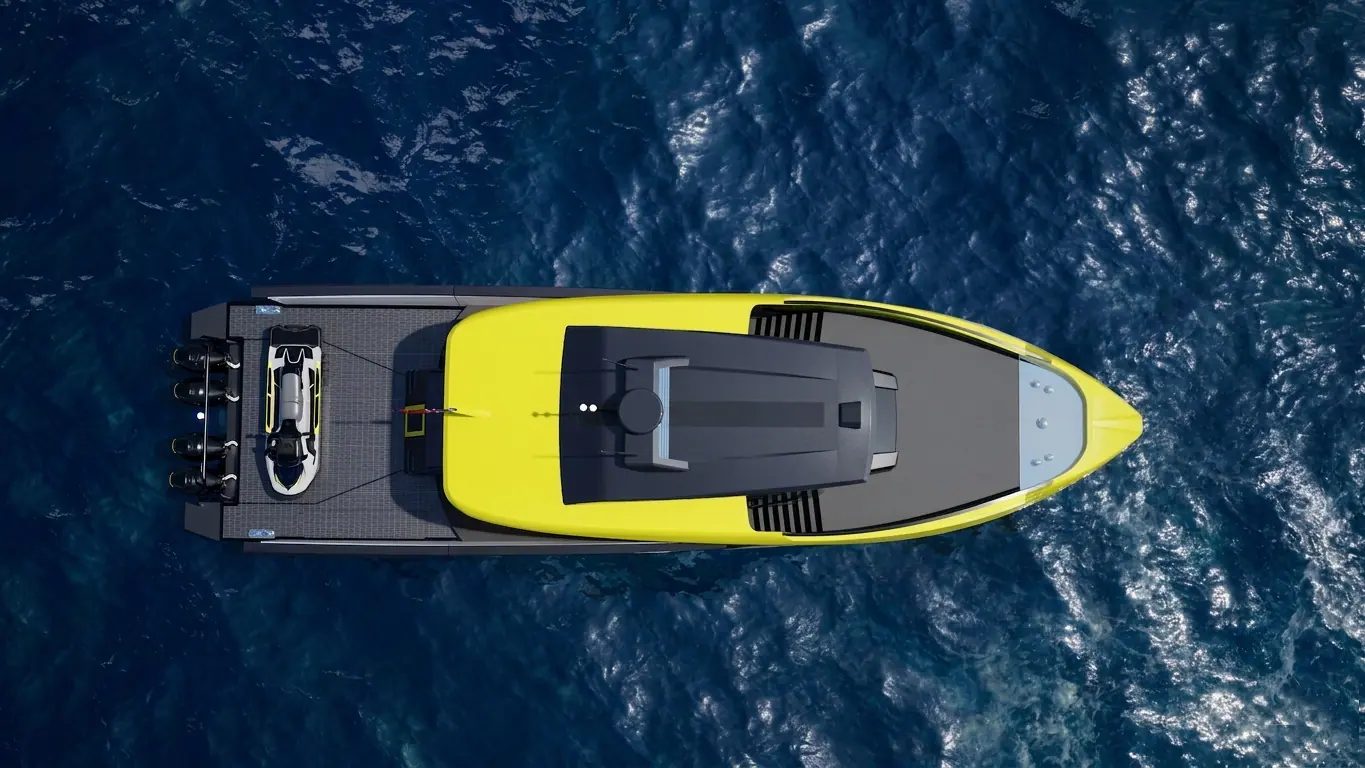

In plan the hull reads as a single, arrow-like gesture: an open observation deck on the bow, a wheelhouse with panoramic glazing at its centre, and a working aft deck with a crane locker above the engine room.
Interior

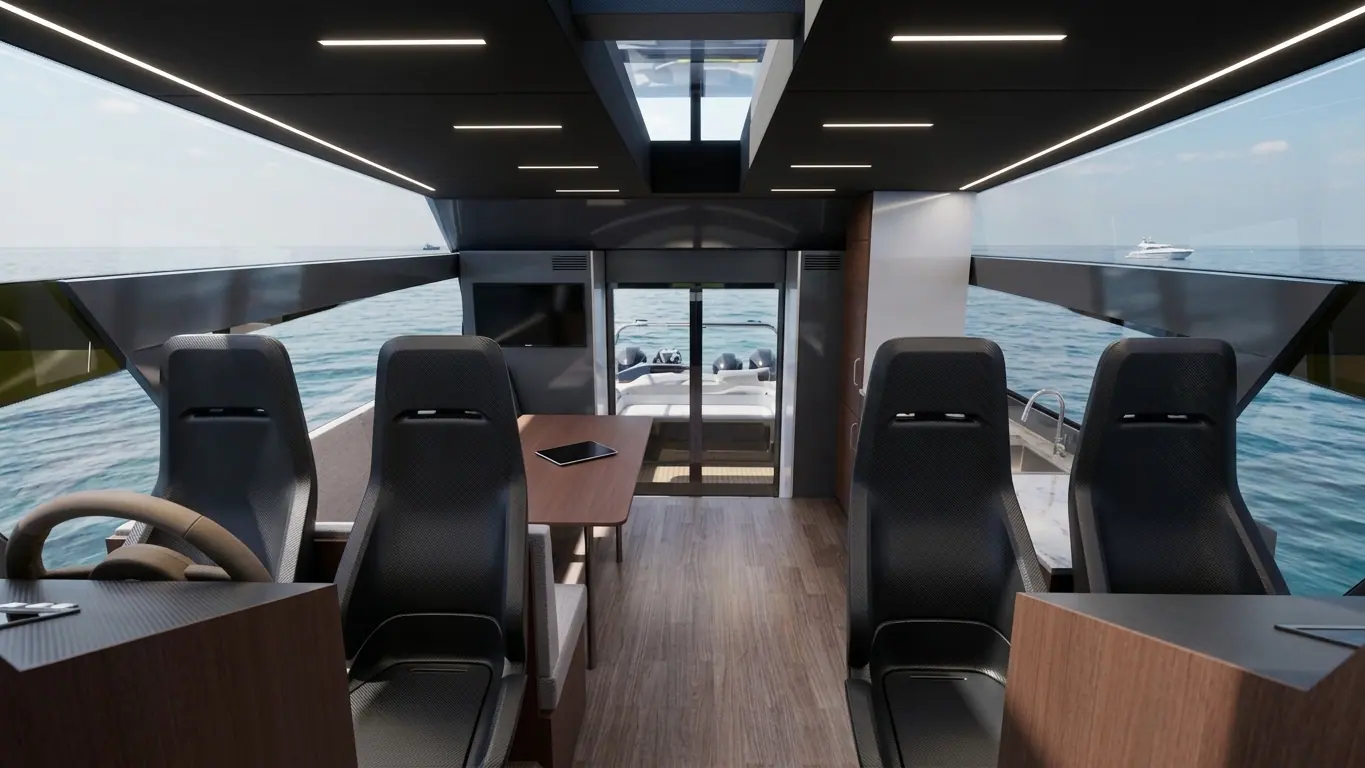

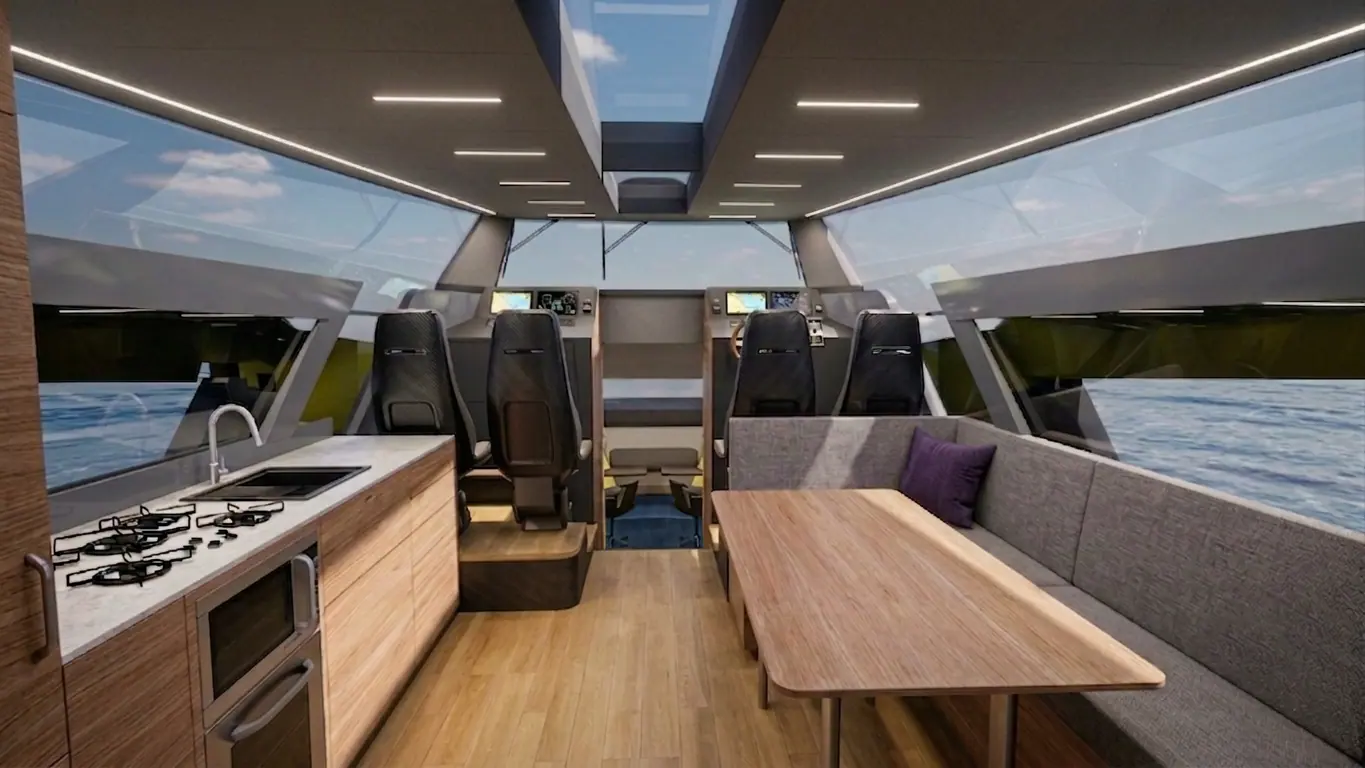

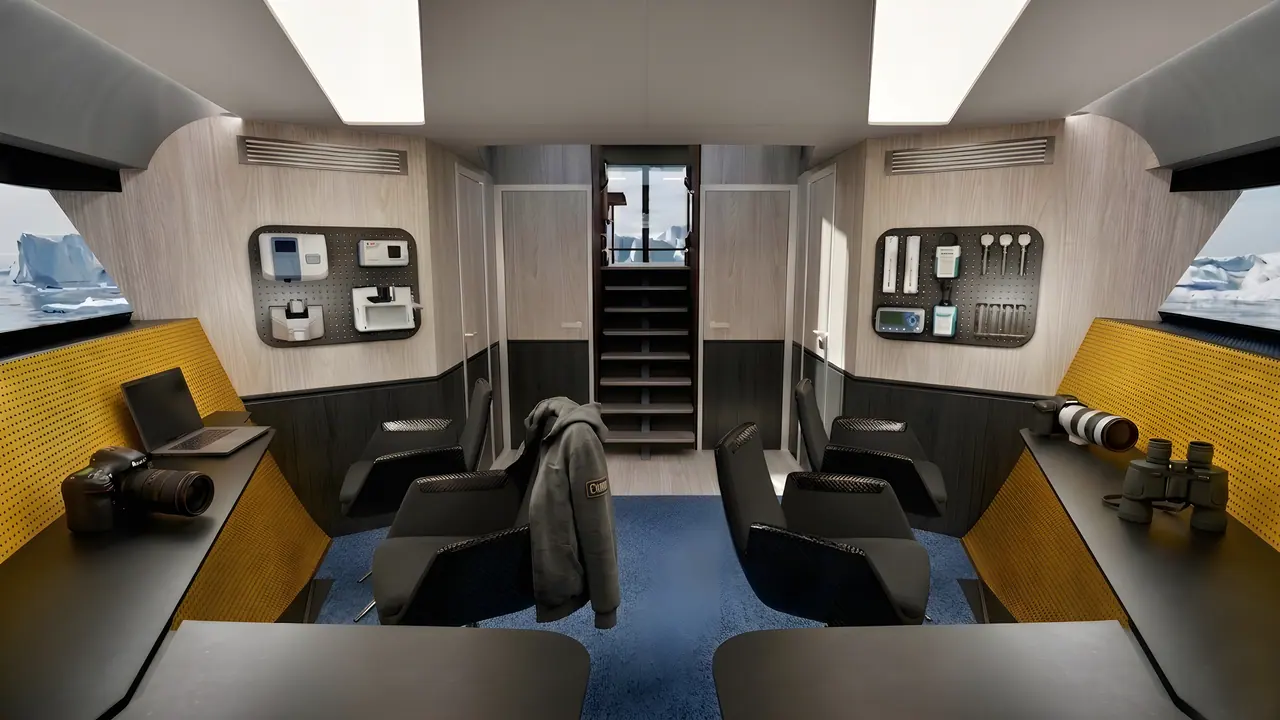

Inside, warm timber and dark technical surfaces balance comfort and function. The main deck joins wheelhouse, galley and dinette in one bright space; below, guest cabins and an equipment store lead forward to an interior observation lounge in the bow, glazed towards the ice.

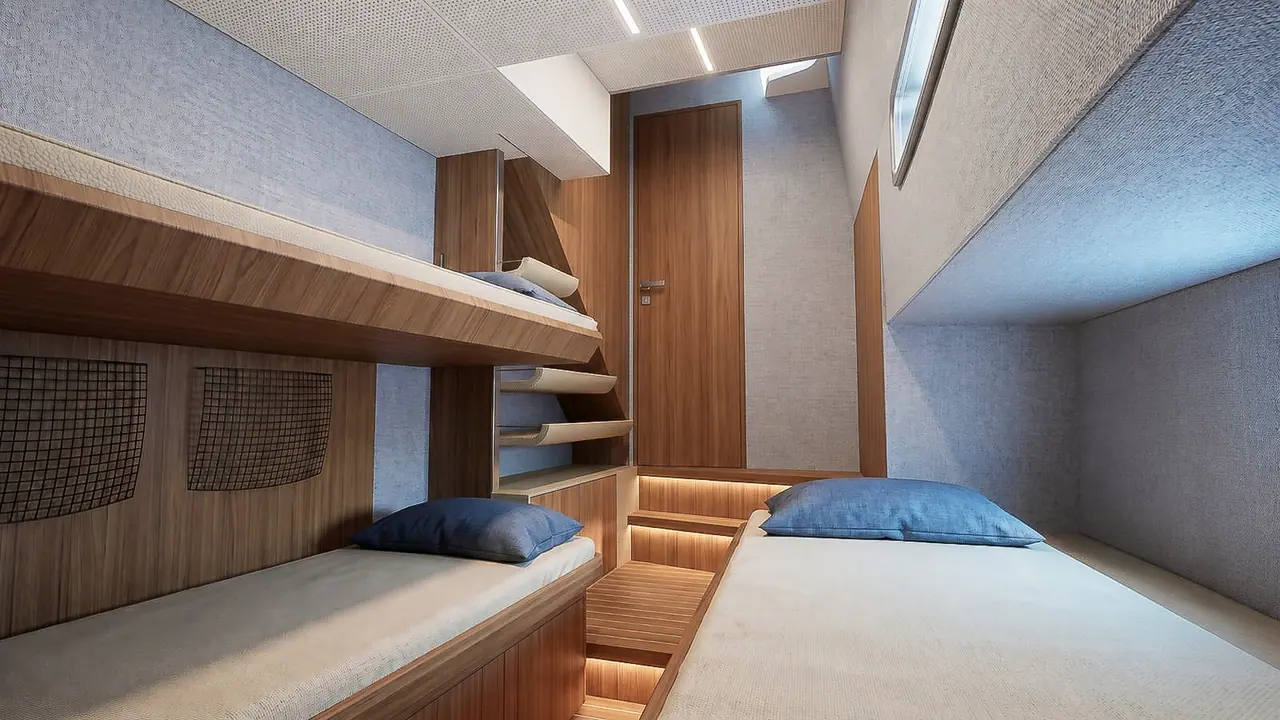

Guest cabin — timber, wool and soft light after a day on the ice.

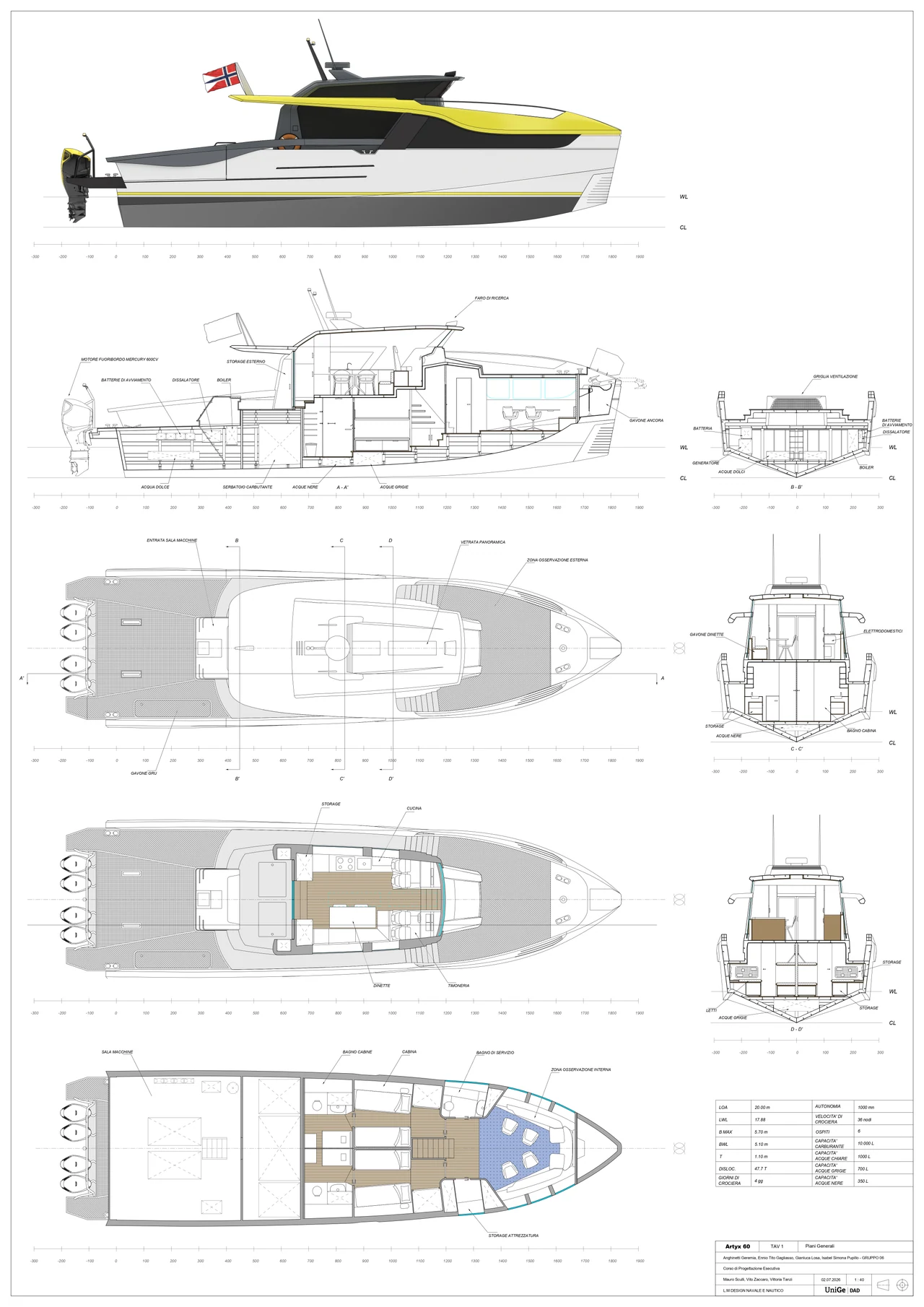

General Arrangement
Profile, longitudinal and transverse sections, deck plans and main particulars — scale 1:40, A0 sheet.
